Prediction of spatio-temporal data on meshed surfaces using advection-diffusion SPDEs

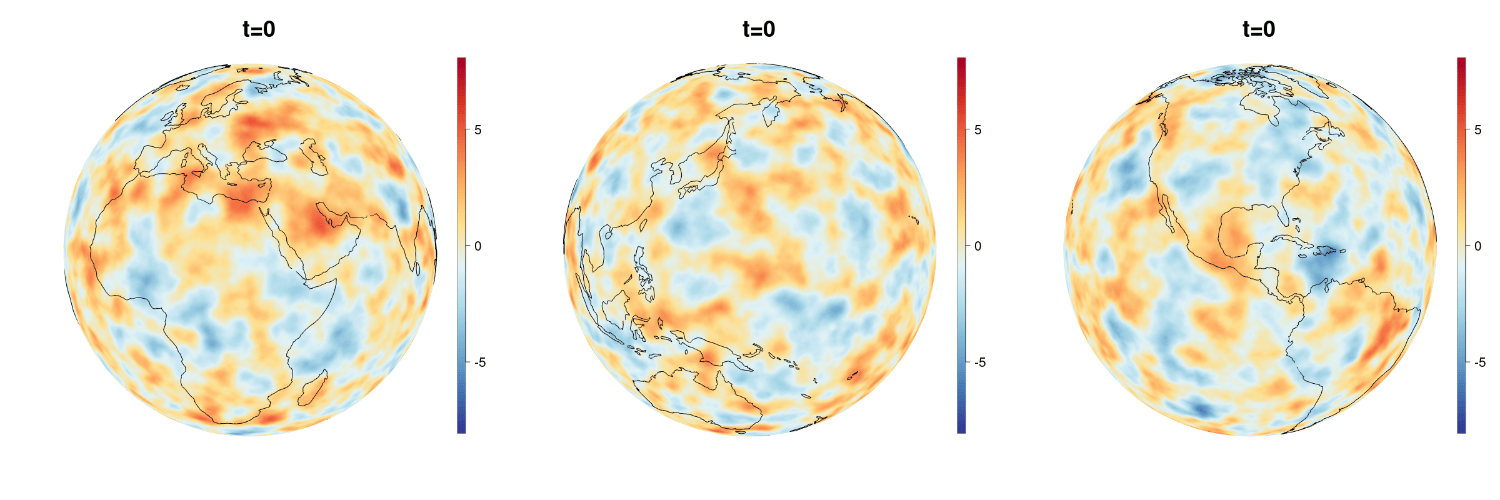

Fig 4.1: Simulation of a solution to the advection-diffusion SPDE on a meshed sphere, represented from three different viewpoints on the surface.

$Advection potential function $\xi$ (irrotational component).$

(A) Advection potential function $\xi$ (irrotational component).

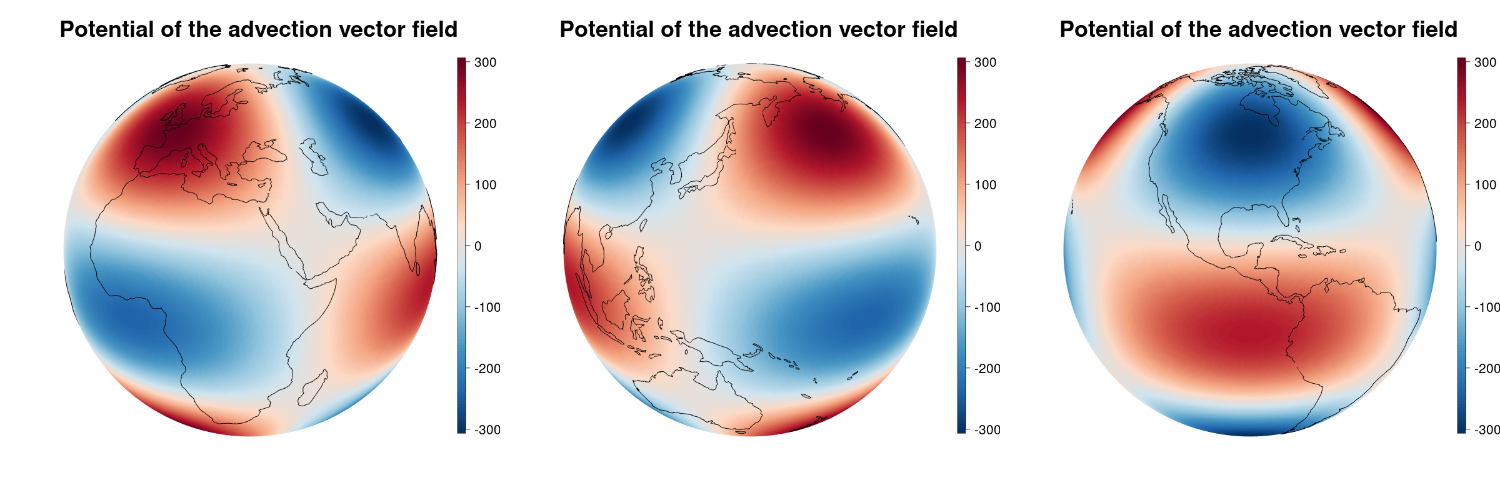

$Advection potential function $\chi$ (divergence-free component).$

(B) Advection potential function $\chi$ (divergence-free component).
